Name: MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50
Brand: MechMaxx
SKU: 101201
Price: 2599.0 USD
Availability: InStock

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart with 1000W 48V Brushless DC Motor (EH50)

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart -EH50 Overview

Introducing the MechMaxx EH50, the ultimate solution for your heavy-duty transportation needs. Designed with gardeners, landscapers, and warehouse workers in mind, this advanced battery-powered hydraulic tipping dump cart combines power, efficiency, and versatility to tackle the most demanding tasks with ease.

The MechMaxx EH50 is equipped with a robust 1000W brushless DC motor, providing exceptional driving force and zero emissions for a quieter, more environmentally friendly operation. Its 48V 32Ah lead-acid battery guarantees an impressive endurance, allowing you to work continuously for over 12 hours on a single charge. With a 1100 lb load capacity and an 8.2 cu.ft tipping bucket, this mini dumper is built to handle both solid and semi-fluid cargo efficiently.

Imagine effortlessly maneuvering through narrow aisles and standard doorways with its compact 29-inch width design. The hydraulic power unit (HPU) offers one-key lifting and lowering of the tipping bucket, simplifying your workload and saving you valuable time. The unique electromagnetic brake system ensures safety, while the ergonomic thumb throttle provides precise speed control. Additionally, the EH50 features a 30W light for optimal visibility in dim environments, making it perfect for night shifts or dark warehouses.

Upgrade your workflow with the MechMaxx EH50 and experience the future of material handling today. Don’t miss out on our free and fast shipping!

MechMaxx 1100Lbs Capacity | Battery Powered Hydraulic Tipping Dump Cart |1000W 48V Brushless DC Motor (EH50) Features

1000W DC Motor and Battery: Provides robust driving force and ultra-long endurance with zero emissions and no noise.

Hydraulic Power Unit (HPU): Offers one-key lifting and lowering of the tipping bucket for ease of use and efficiency.

Lighting and Width: 30W lights for nighttime work and a compact width of 28.5 inches for easy passage through narrow spaces.

Loading Capacity 1100lb: Integrally welded tipping bucket with a capacity of 8.2 cu.ft, suitable for transporting both solid and semi-fluid cargo.

Controller and Speed: Enables three forward speeds and one reverse speed, matching the operator's walking speed for safety.

Electromagnetic Brake and Thumb Throttle: Automatically stops the vehicle when the handle is released; thumb throttle allows effortless speed control.
Endurance: Can work continuously for 12-15 hours under actual conditions, with a lead-acid battery that fully charges in just 5 hours.

Rear Wheel Steering and Locking Function: Ensures stability and straight-line driving on uneven terrain.

Front and Rear Tires: Safe load capacity of 1100lb supported by tubeless tires and integrally molded hubs to prevent flattening.

1100Lbs Capacity Electric Mini Dumper - MechMaxx EH50 Model

MechMaxx 1100Lbs Capacity | Battery Powered Hydraulic Tipping Dump Cart EH50 Specs

Manufacturer	MechMaxx
Motor	1000 W brushless DC motor
Battery	48 V 32 Ah lead-acid battery
Brake system	Electromagnetic brake
Monitor	Battery Indicator Led Screen
Lighting lamp	2 (pcs) 30 W
Working time	8-10 hours
Charging time	6-7 hours
Charging current	4.5 A
Low speed	0-3.3 km/h
Middle speed	0-4.2 km/h
Tipping method	0-5.0 km/h
Top speed	0-5.5 km/h
Reverse speed	0-1.5 km/h
Loading capacity	1100 lbs/7.62 cu.ft.
Tipping method	Hydraulic tipping
Front wheel	16*6.5-8 tubeless tyre
Rear wheel	13*5.00-6 tubeless tyre
Bucket type	Welded
Weight (N.W/G.W.)	380/437 lbs
Packing Size	533134 in

MechMaxx Electric Mini Dumper EH50 Assembly Video

MechMaxx 1100Lbs Capacity Battery Powered Hydraulic Tipping Dump Cart EH50 Highlights

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50 DC motor and Battery

1000W DC motor and battery

Experience unmatched power with the EH50 mini dumper's 1000W brushless DC motor, delivering exceptional driving force. Its 48V32Ah lead-acid battery ensures ultra-long endurance, while the LED display keeps you informed with real-time voltage and battery level updates. Enjoy the benefits of zero emissions and silent operation, making this mini dumper the perfect eco-friendly and efficient choice.

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50 Hydraulic Power Unit

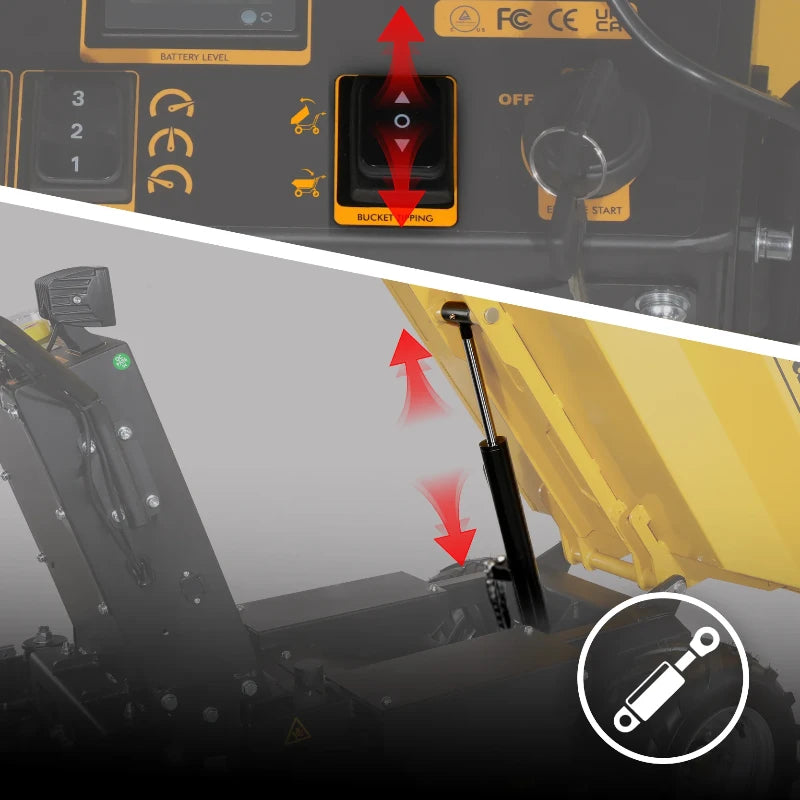

Hydraulic Power Unit (HPU)

The console’s HPU buttons offer effortless one-key lifting and lowering of the tipping bucket, featuring our patented design. The HPU on the chassis includes a compact hydraulic oil tank, a gear pump, and a solenoid valve. These components connect to the hydraulic cylinder at the bottom of the tipping bucket and the console’s electric switch via distinct oil and electrical circuits, ensuring seamless and efficient operation.

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50 Headlight

Lighting and Width

The E50 features a powerful 30W light at the console and front, perfect for night operations and dark warehouse environments. Its compact design, measuring just 28.5 inches in width, allows it to effortlessly navigate through standard yard gates and narrow passages, making it highly versatile and convenient.

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50Features

Loading Capacity 1100lb

The tipping bucket has a generous volume of 8.2 cubic feet and a safe load capacity of 1100 pounds. Its integrally welded construction allows it to transport both solid and semi-fluid cargo with ease. Powered by a 1000W brushless DC motor, it can effortlessly handle loads of up to 1100 pounds.

Controller and Speed

The EH50's uniquely designed controller offers three forward speeds and one reverse speed. With a maximum speed of 3.5 mph and a reverse speed of 1.0 mph, it matches the walking speed of a person to ensure operator safety. The right handle features F and R buttons for easy switching between forward and reverse; F for forward and R for reverse.

Electromagnetic Brake and Thumb Throttle

The E50's thumb throttle on the right handle allows for effortless speed control with a simple thumb movement. For enhanced safety, the red safety handle on the left automatically stops the vehicle when released. Unlike traditional drum brakes, the E50 features an advanced electromagnetic brake next to the axle, ensuring reliable stopping power.

Endurance

The EH50 can operate continuously for 6 hours when fully loaded with 1100 pounds. Under typical working conditions, it can run for 12-15 hours. The 48V32Ah lead-acid battery charges fully in just 5 hours.

Front and Rear Tires of MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50

Rear Wheel Steering and Locking Function

The EH50 features a rear axle suspension design and two 13*5.00-6 tubeless tires with swivel wheels for easy steering. The rear wheels also have a locking function, allowing you to lock them for straight-line driving and enhanced stability on long distances or uneven terrain.

Front and Rear Tires

The EH50 is designed with a safe load capacity of 1100 pounds, but tests show it can handle up to 1500 pounds. To support such a large load, it features two 166.5-8 tires and two 135.00-6 tires, all tubeless. The integrally molded hubs ensure the tires remain firm under any working conditions.

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50 FAQs

What is the maximum load capacity of the EH50?

The EH50 has a safe load capacity of 1100lbs, but it has been tested to support up to 1500lbs.

How long does the battery last on a full charge?

The 48V 32Ah lead-acid battery allows the EH50 to work continuously for 12-15 hours under actual working conditions.

How does the electromagnetic brake work?

The electromagnetic brake stops the vehicle immediately if the safety handle is released. It is manually flipped to push the vehicle back to charge in case of outdoor work without electricity.

What kind of tires does the EH50 have?

The EH50 has two 166.5-8 tires and two 135.00-6 tubeless tires, all designed to support heavy loads and ensure stability.

Can the tipping bucket transport both solid and semi-fluid cargo?

Yes, the integrally welded tipping bucket can transport both types of cargo with ease

MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50 Owner's Manual

If you need more information on the specifications, installation, warranty, etc -- Please check out the MechMaxx 1100 lb Capacity Battery Powered Hydraulic Tipping Dump Cart EH50 Owner's Manual
